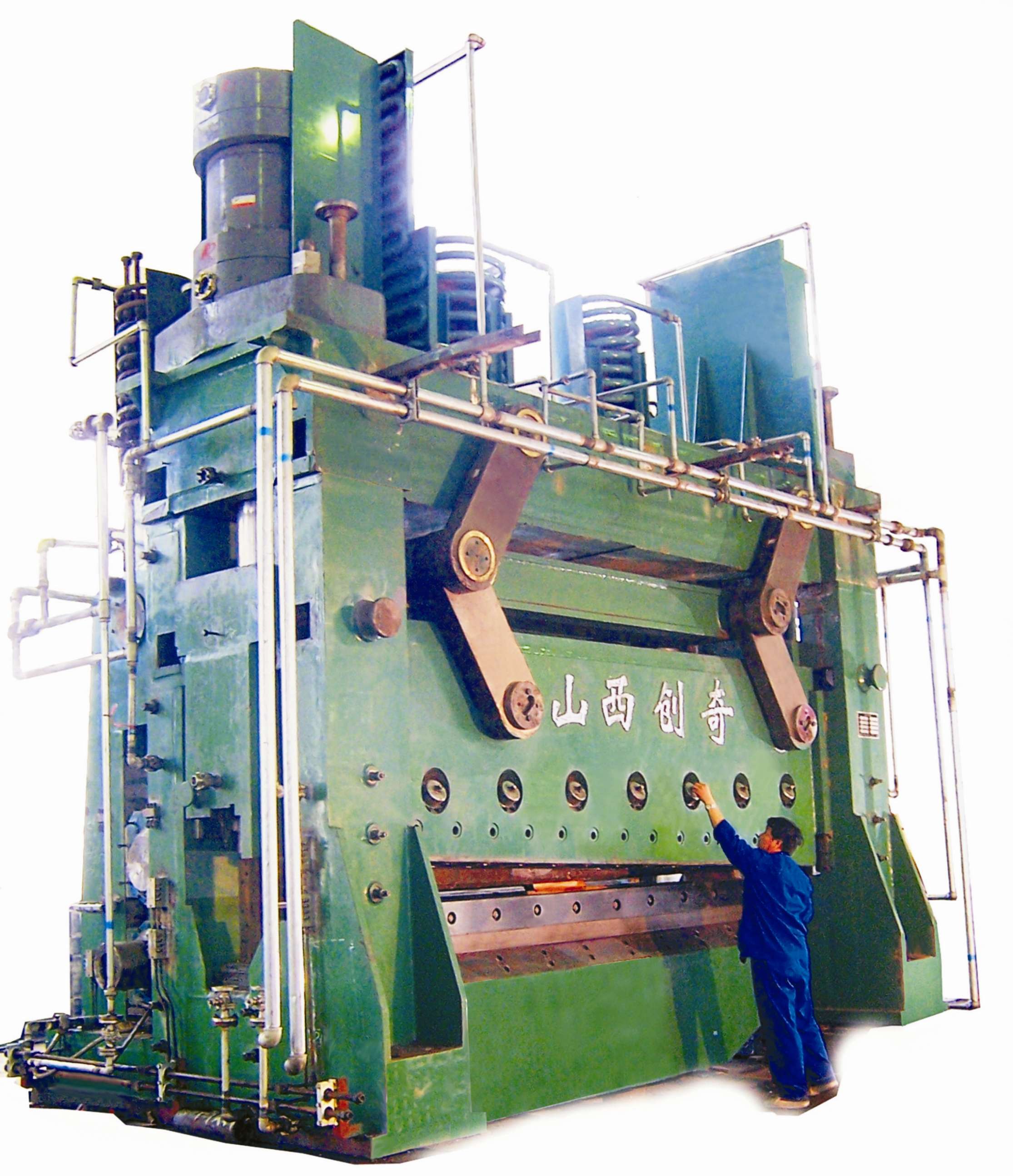

The technical performance of the shear is as follows:
1. Shear structure: up cutting full hydraulic shear
2. Maximum shear force: 4500kN
3. Blade opening: 220mm
4. Upper blade inclination: 2.5 degrees
5. Maximum width of shear steel plate: 3650mm
6. Shear plate thickness:
1) Cold shear (normal temperature)
a) Carbon structural steel plate below 30 steel, shear steel plate thickness δ≤ 22mm
b) The shear thickness of carbon structural steel plate 35 ~ 45 (hot rolled plate annealed state) δ≤ 14mmc and low alloy structural steel plate (hot rolled plate annealed state) δ≤ 16mm
d) Shear thickness of stainless steel plate (annealed state of hot rolled plate) δ≤ 14mm
2) Hot shear (450 ° to 850 ℃)
a) Shear thickness of Q235 plate δ≤ 42mm
b) 16Mn steel plate shear thickness ≤ 40mm
|
